Original Ford Kuga 2008 Navigation LCD Screen Display

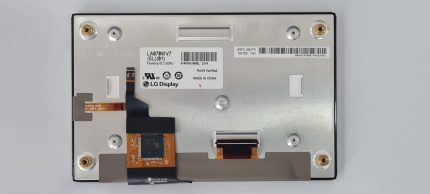

The part is the one listed in the picture above.
Please bfore purchase open the unit and confirm with us the part no from the back of the LCD screen to be sure that you order the right part.
This LCD screen will fix issues like: Damage broken screen, no light, fuzzy screen, pixelated screen, and other LCD screen related issues.
Please note taht we offer installation service in case is needed, please get in touch with us we will be more then happy to help you.
- Brand: Sharp
- Model P/N: LQ050T5DG01
- Diagonal Size: 5”
- Panel Type: a-Si TFT-LCD, LCM
- Resolution: 400(RGB)×240, WQVGA  94PPI
- Pixel Format: RGB Vertical Stripe
- Active Area: 108(W)×64.8(H) mm
- Bezel Opening: 110.0(W)×68.9(H) mm
- Outline Size: 120.6(W)×75.2(H) ×16.8(D) mm
- Surface: Antiglare
- Brightness: 600 cd/m² (Typ.)
- Contrast Ratio: 800:1 (Typ.) (TM)
- Viewing Angle: 80/80/80/80 (Typ.)(CR≥5)
- Display Mode: TN, Normally White, TransmissiveÂ
- Best View on: –
- Response Time: 35 (Typ.)(Tr+Td)
- Display Colors: 262KÂ Â 50% NTSC
- Lamp Type: 4S2P WLED , 10K hours , Without Driver
- Frequency: 60Hz
- Touch Screen: Without
- Panel Weight: 110g (Typ.)
- Application: In car navigation
- Signal Interface: CMOS (1 ch, 6-bit) , 40 pins FPC
- Input Voltage: 3.3/9.0V (Typ.)(VCC/VDC)
- Environment: Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C ; Vibration Level: 3.0G (29.4 m/s²)
